HMK PLUS ALL IN ONE (3-4kWh)

Support high Power Module with 27A PV Input Current.

Dual output for smart load management.

Remote Configuration & upgrade.

Support parallel system at maximum 30kw inverter & 40kwh capacity.

Configurable AC/Solar input priority via LCD setting.


Product advantages

Pure sine wave output, compatible with various sensitive devices (such as computers, medical equipment)

Utilizing a high-efficiency topology and optimized control algorithms, it achieves a maximum conversion efficiency of up to 98%, ensuring higher energy yield and return on investment

Built-in WiFi/4G communication module (optional) enables real-time monitoring of power generation data and fault diagnosis via APP and cloud platforms, significantly enhancing operation and maintenance efficiency

Equipped with comprehensive grid-connection protection functions (such as anti-islanding, over/under voltage protection, etc.), which complies with international standards, ensuring grid-friendly and safe, worry-free operation

Featuring a high protection rating, it is specifically designed for indoor environments like garages and equipment rooms, ensuring fundamental safety while achieving a more competitive cost structure

Ultra-lightweight body for easy, space-saving installation with pre-assembled components for added convenience

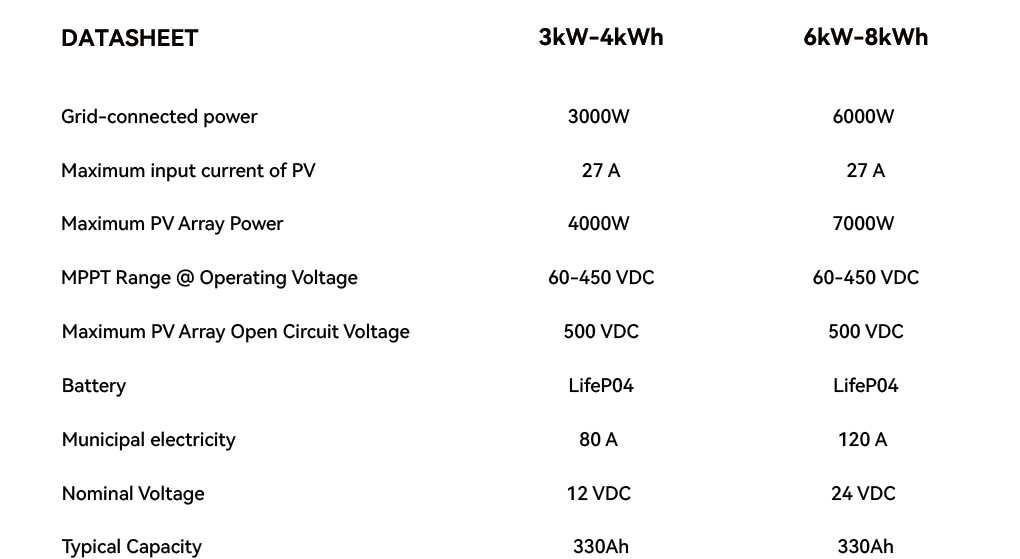

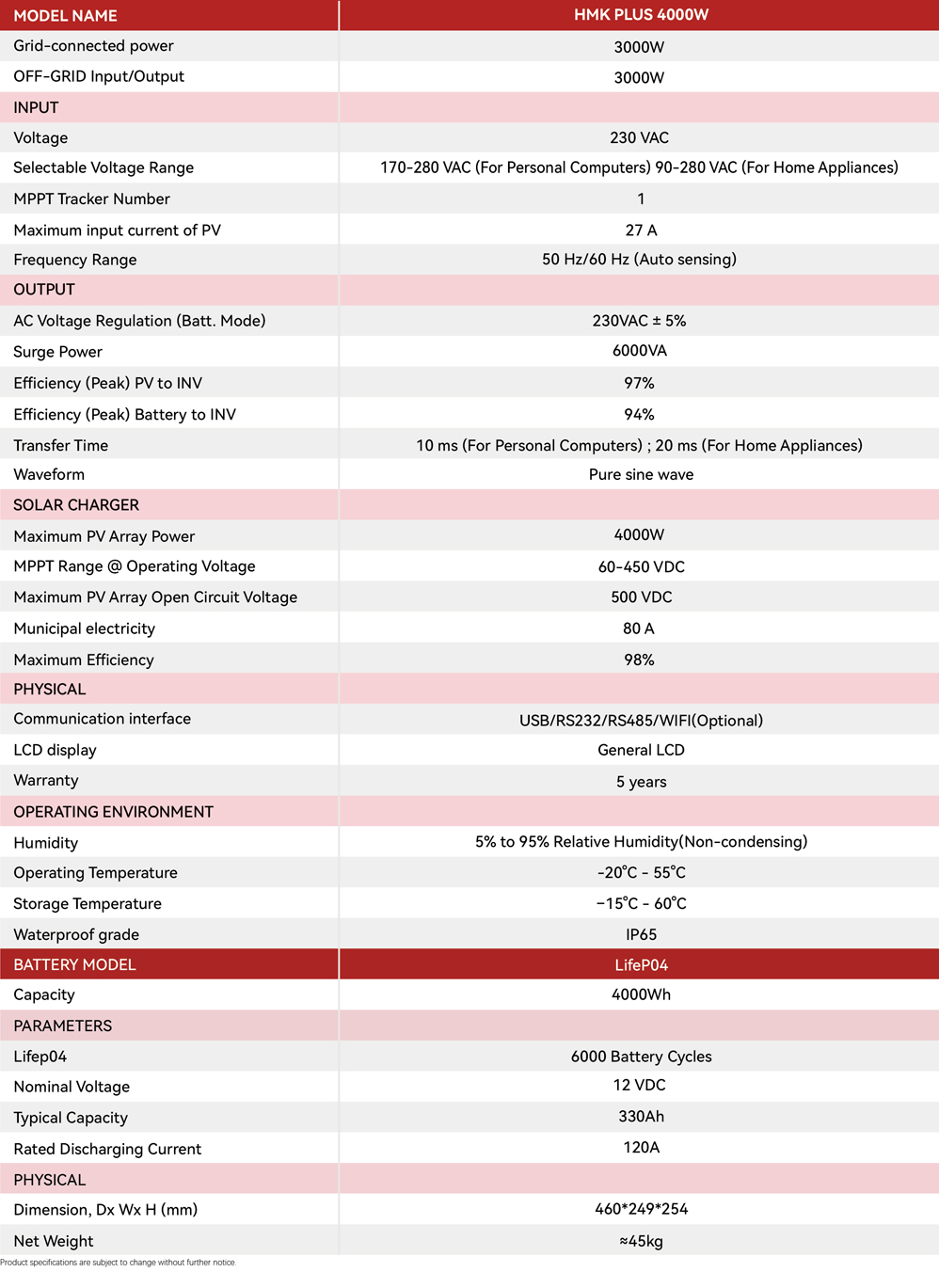

Technical Specifications
